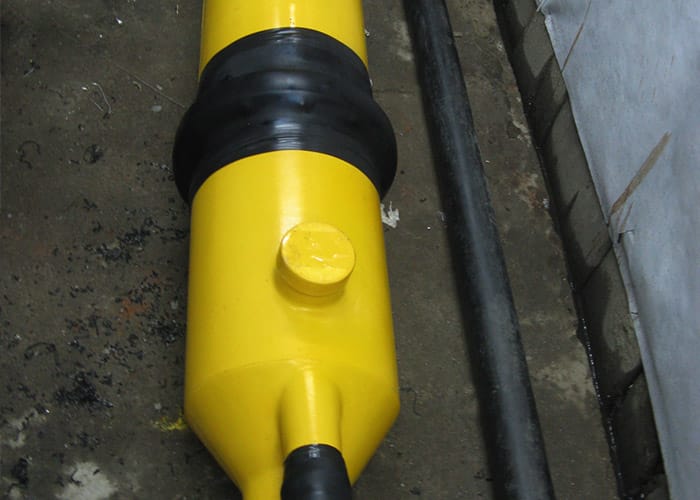

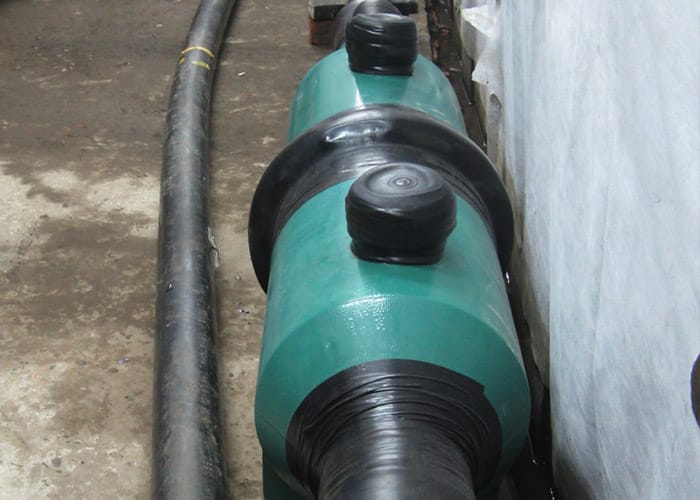

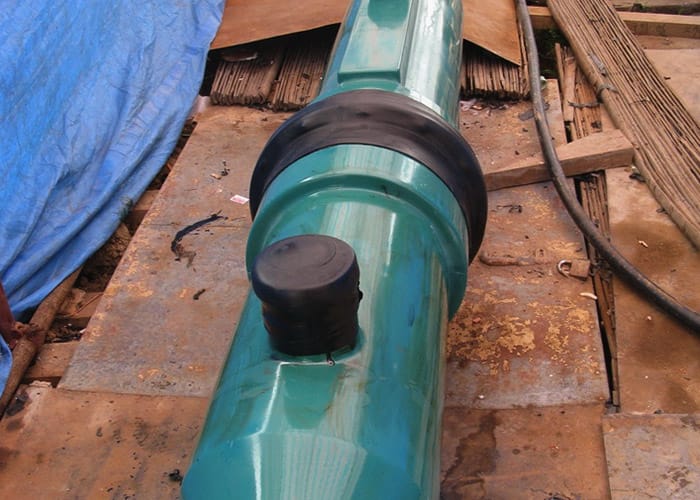

Python® premolded rubber joints (PMJ) are available for 72.5kV to 550kV IEC (69kV to 500kV IEEE) solid dielectric cable systems. These joints are used to connect two pieces of XLPE or EPR cables and can be used in the event of a failure. Utilizing the mechanical shrink greatly decreases the amount of space needed during installation and removes the need for special installation tools. Typically used to connect cable runs and for cable repairs.
Features and Benefits
Premolded joint body with self-contained stress control relief
Shear bolt connectors available to ease installation
100% routine tested to ensure quality
Expansion capabilities available in U.S. and Shanghai only allowing customers to maintain emergency stock without relying on vendors
230kV, 345kV, and 500kV is prequalification and type tested per IEC 62067
Mechanical shrink capabilities allow for reduction in equipment usage and installation space
Factory premolded joint
Shear bolt connectors available.
