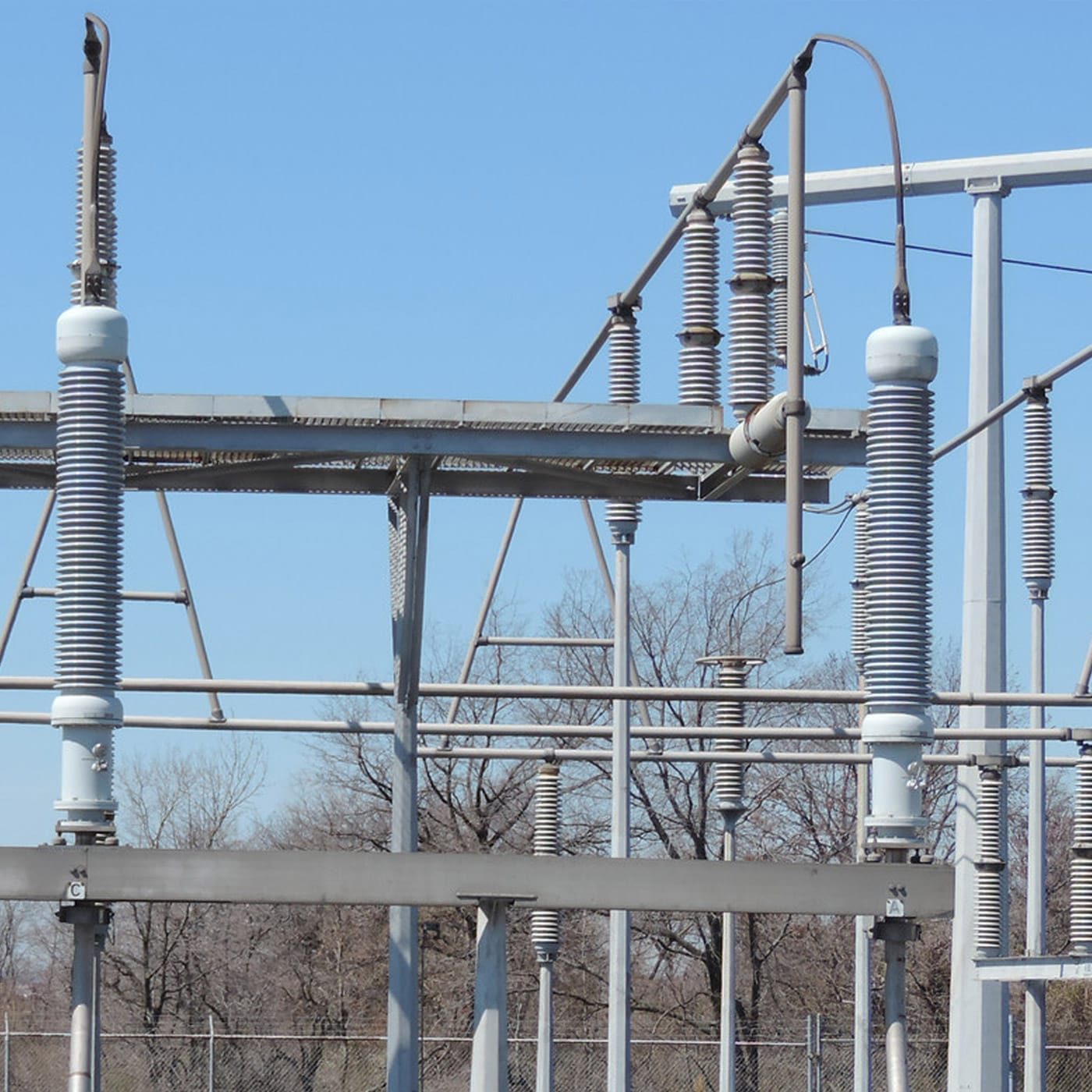

G&W Electric offers a variety of transmission cable accessories for XLPE, EPR, HPFF, LPFF, and SCOF cable systems. Designed for high voltage applications, these accessories ensure proper installation of cable joints and splices. Utilizing mechanical shrink technology, they provide easy installation and long-term reliability, ensuring efficient performance and extended cable life expectancy.
Find the Right Equipment for Your Needs
Explore our selection below for more information about our transmission cable accessories. Our range includes solutions for connecting high voltage cables, including ATA products for HPFF systems, ensuring reliable and efficient performance. We offer mechanical shrink technology for easier installation, reducing the need for specialized tools. Our products are compatible with gas insulated switchgear(GIS), facilitating cable termination and connection in various power systems. Additionally, our high voltage outdoor terminations provide safety, convenience, and cost-efficiency for demanding applications, featuring long-term reliability across a wide range of voltage levels.
Python Extruded Dielectric Cables
The Python® series of transmission cable accessories are available for solid dielectric cable systems. Outdoor and equipment terminations and joints are available from 72.5kV to 362kV IEC (69kV to 345kV IEEE). Transition cable joints are available through 138kV.
Self-Contained Pipe Type
G&W Electric offers a variety of transmission cable accessories for low- and high-pressure, fluid and gas filled, self-contained, and pipe type cable systems. Cable terminations and joints are available through 345kV.
Frequently Asked Questions
What voltage ratings do transmission cable accessories cover?
Voltage ratings for transmission cable accessories can differ. G&W Electric has cable accessories for XLPE from 69kV to 500kV. For pipe type cables, cable accessories are available from 69kV-345kV.
What's with the porcelain shape?
The porcelain insulator is not a smooth surface but instead has concentric protrusions, commonly referred to as sheds or skirts to increase it’s creepage distance. Creepage distance is important due to electricity’s inherent nature to follow the path of least resistance. The voltage will follow the shape of the shed while traveling from high voltage (at the top of the termination) to ground (at the bottom) significantly decreasing the likelihood of a flashover.
How do I install transmission cable accessories?
Installing transmission cable accessories should only be done by trained professionals. Different insulation types on transmission cables require different types of preparation. Once the cables are prepared, the cable accessories are installed on the cable.
