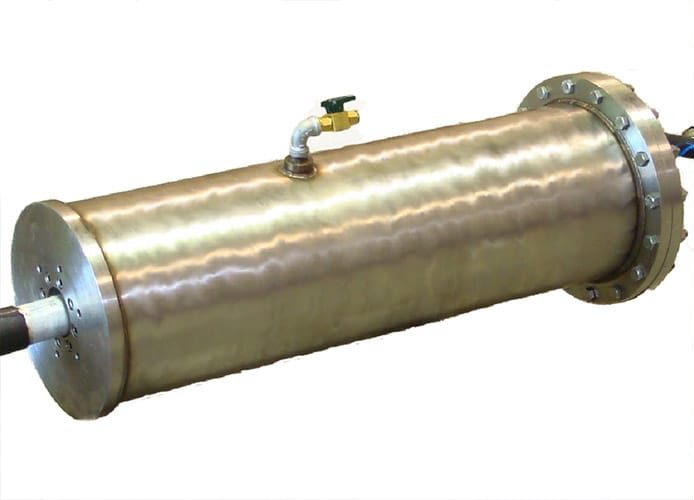

G&W Electric’s TJNT3-33 transition joints are available for 333kV systems for joining gas insulated HPFF cables to XLPE, EPR, or extruded dielectric cables.
Features and Benefits
Three fully shielded tape stress relief cones on gas insulated cable side.
Epoxy insulators for plug-in terminations on extruded cable side.
Stainless steel enclosure, pressure tested to 400psi.
Shorter design that requires less space than competitive designs.
Option of terminating gas insulated cable first and connecting extruded cables at a later time.
33kV for HPGF to Extruded Solid Dielectric Cables
Product Literature
TJNT33 Transition Joints |
