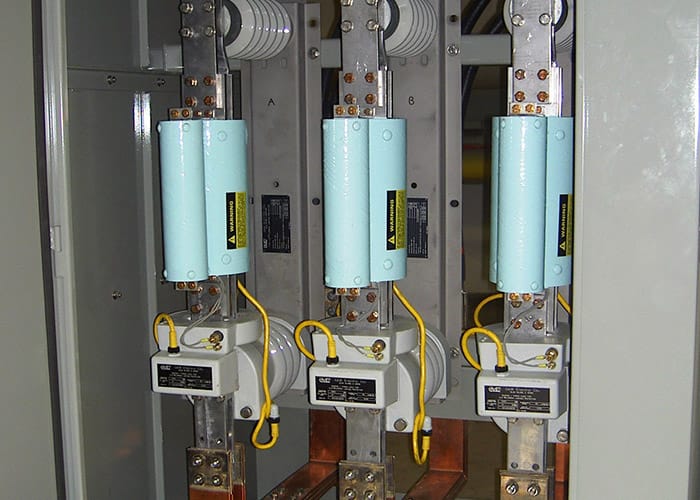

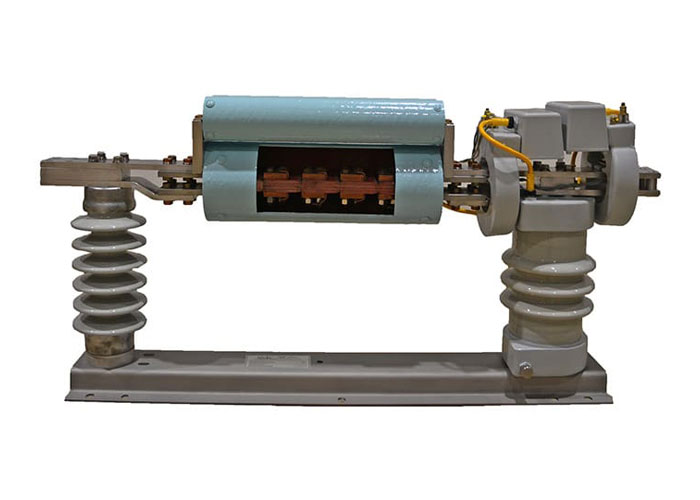

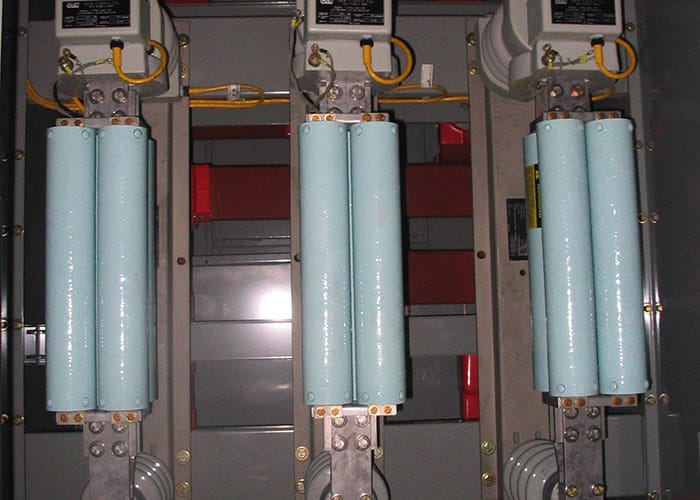

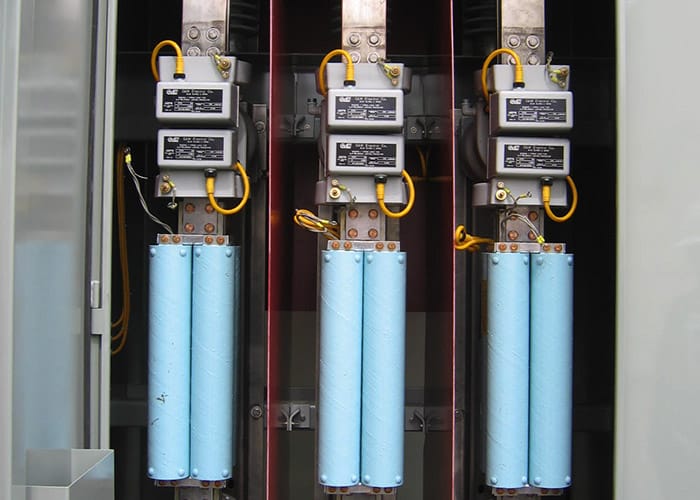

G&W Electric’s Current Limiting Protectors (CLiP) offer the advantages of current limitation for 2.8 through 38 kV systems with continuous current ratings up to 5000 A. Compact, totally sealed construction permits the CLiP to be installed both indoors and out, either pole or structure mounted or within an enclosure. The CLiP’s unique ability to provide high continuous current ratings with current limitation and ultra-high speed of operation in one package make it an economical solution for a variety of overcurrent protection needs.
Features and Benefits
System Upgrade - without replacing under-rated equipment such as circuit breakers, reclosers, switches or bus
Reactor Bypass - to eliminate costly operating losses and eliminate voltage regulation problems
Transformer Protection - to minimize damage by reducing fault energy

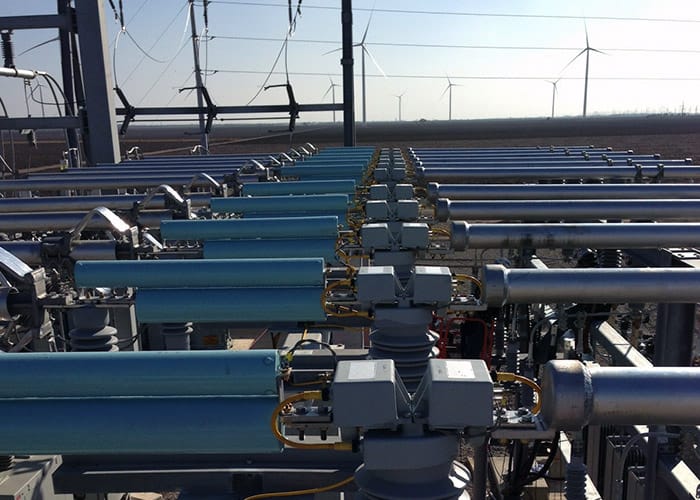

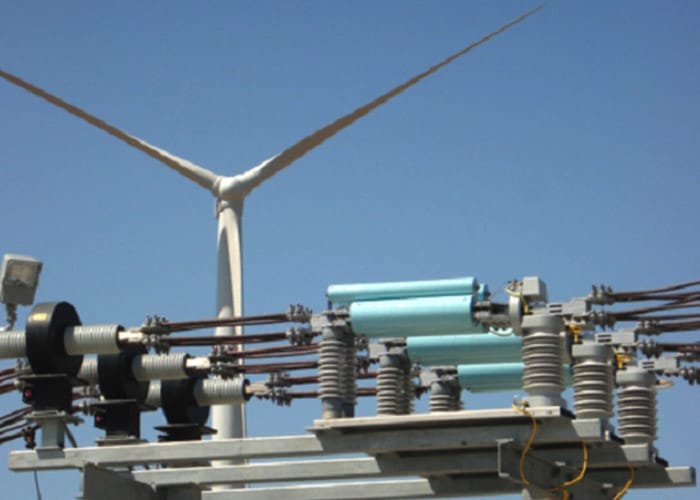

Cogeneration - to limit contribution to the system while protecting your co-generator investment
Lower Breaker Ratings - to reduce the cost of full rated equipment in new installations while improving protection
Close Bus Ties - without exceeding equipment ratings
Electrical Ratings Chart for CLiP
| Max. Voltage | 2.8 - 38kV |
| BIL Impulse | up to 200kV |
| Continuous Current | up to 5000A |
| Interrupting Rating | up to 120kA sym. |
